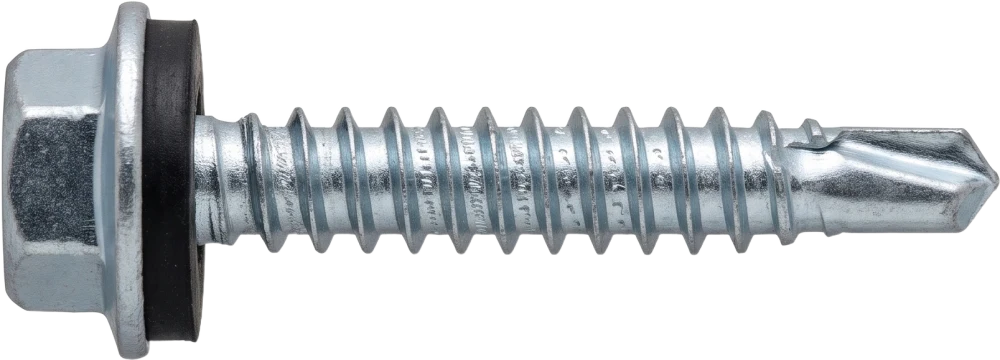

Metal
Panel screws and screws for a steel supporting frame. The drill point bores and drives in one movement — no pilot hole.
- Diameter
- Ø 5.5 and Ø 4.8 mm
- Lengths
- 19 – 320 mm
- Head
- hexagonal HEX
- Thread
- combined
- Coating
- Dacrotized 500H

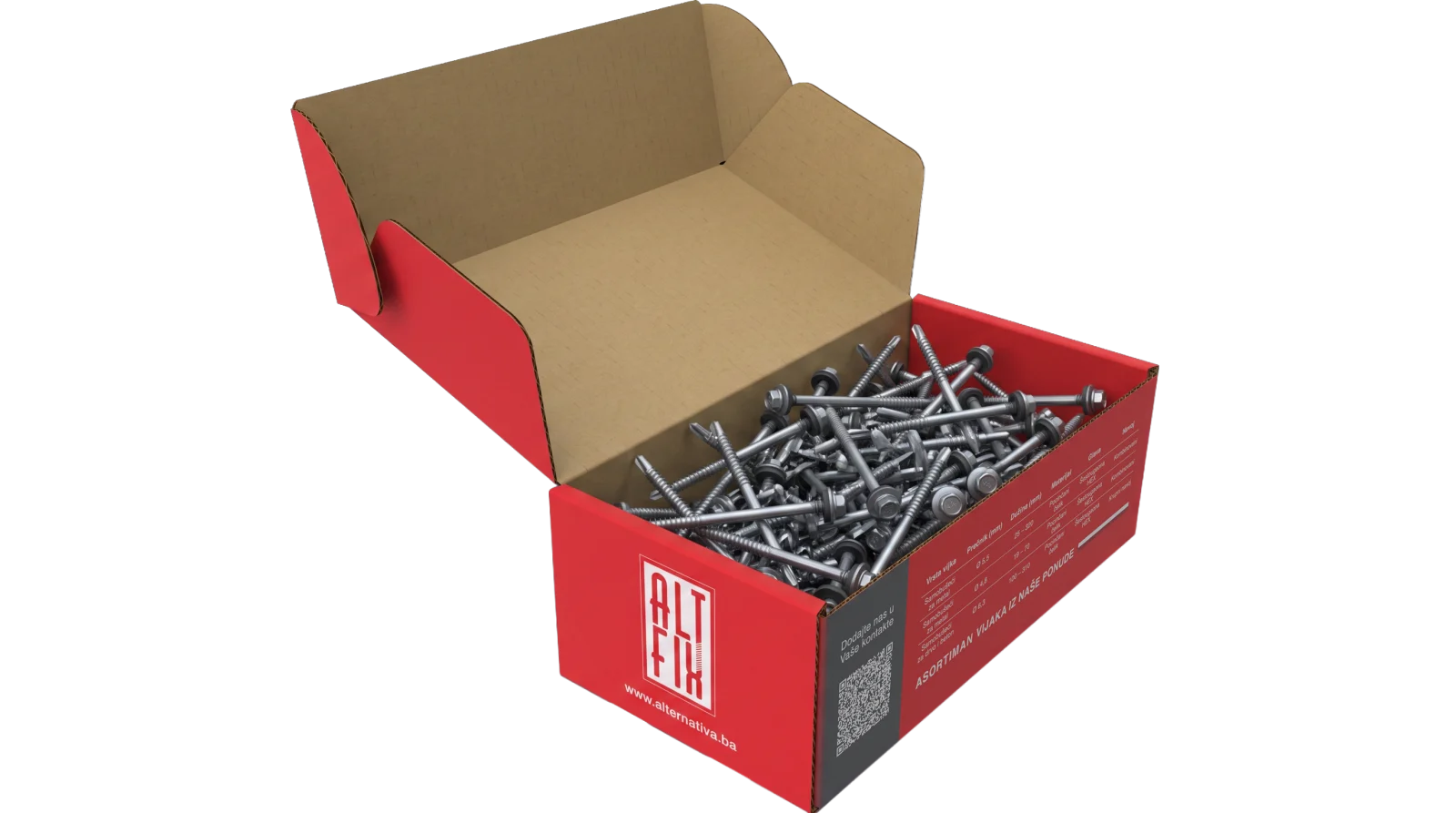

ALTFIX
Self-drilling screws · metal | concrete | timber
Fasteners
Screws and fixings for panels, sheets and steelwork.
25 – 320mm
range of lengths
3
substrates: metal, timber, concrete
500h
salt spray test
The substrate picks the screw
Three substrates, three screws
Diameter, length and thread are chosen by what the screw goes into. The protection is chosen by where it sits.

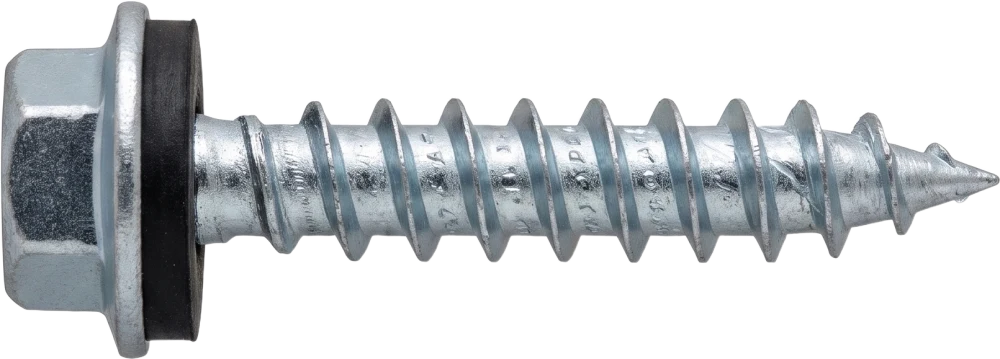

Timber
For a timber supporting frame, with a coarse thread that grips soft fibre and holds even as the timber moves.
- Diameter
- Ø 6.3 mm
- Lengths
- 100 – 310 mm
- Head
- hexagonal HEX
- Thread
- coarse
- Coating
- zinc 12 μm + paint 50 μm
Concrete
The same screw profile works in concrete too — a self-drilling point and a coarse thread, with no plugs and no extra tools.
- Diameter
- Ø 6.3 mm
- Lengths
- 100 – 310 mm
- Head
- hexagonal HEX
- Thread
- coarse
- Coating
- galvanised steel
Protection
How long the screw head holds out
500h
Panel screws and screws for metal
Dacrotized 500H
A ceramic coating that stands a 500-hour salt spray test. That is how long the accelerated ageing in a salt fog chamber lasts — the measure by which coatings for outdoor use are compared.
12 + 50μm
Screws for a timber supporting frame
Zinc and paint
A zinc coating of 12 μm and a paint coating of 50 μm. The thickness of the layer is what decides matters for a screw that spends its whole life outdoors, exposed to damp and sun.
Details
What every screw carries
- Twin thread faster driving and a firmer grip
- Self-drilling point DC6 and DC12
- Ceramic coating Dacrotized 500H

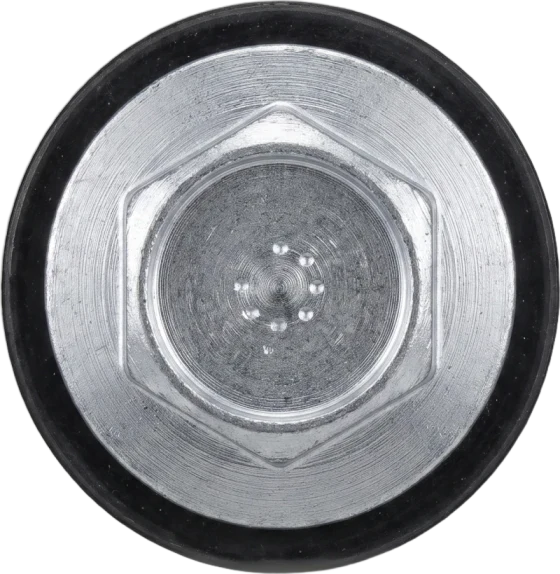

- EPDM washer seals the joint against water
- UV resistant the colour does not fade
- Paint coating 50 μm in the colour of the roof or façade
Range
Screws from our range
Self-drilling screws are the best solution for fixing sandwich panels quickly, securely and lastingly to steel or timber substructures. Thanks to the integrated drill point, drilling and driving happen at the same time, with no need to pre-drill the holes. That speeds up installation considerably and reduces the need for additional tools.
| Type of screw | Diameter (mm) | Lengths (mm) | Material | Head | Thread |
|---|---|---|---|---|---|
| Self-drilling for metal | Ø 5.5 | 25 – 320 | Galvanised steel | Hexagonal HEX | Combined |
| Self-drilling for metal | Ø 4.8 | 19 – 70 | Galvanised steel | Hexagonal HEX | Combined |
| Self-drilling for timber and concrete | Ø 6.3 | 100 – 310 | Galvanised steel | Hexagonal HEX | Coarse thread |
- Fast, simple installation with no pilot drilling
- High resistance to corrosion and the weather
- A secure seal with the EPDM washer
- Less working time and lower installation costs
- A dependable joint that assures a long life for the structure
Need a quantity for a building?
Tell us the type of substrate, the panel thickness and the number of pieces — we come back with a quotation and the lengths you need.
