Trapezoidal sheets
The load picks the profile, not the other way round
Profiles in this range
01
ATLAS
load-bearing trapezoidal sheet
A load-bearing profile for long spans — lengths up to 14 m, zinc coating 275 g/m².
View profile
02
STRONG
trapezoidal roof and façade sheet
An economical profile 1,100 mm wide, rib height 20 mm.
View profile
03
MASTER
load-bearing trapezoidal roof sheet
A load-bearing roof profile 1,000 mm wide, with stiffeners in the lower zone.
View profile
04
ELEGANT
trapezoidal roof and façade sheet
An adaptable profile 1,100 mm wide — also the base for snap-lock sheets.
View profile
05
UNIVERZAL
coarse-profiled roof sheet
A coarse profile, cover width 1,050 mm, rib height 30 mm.
View profile
06
ZENIT
fine-profiled sheet
A fine profile with an 8 mm rib — cover width 1,150 mm.
View profile

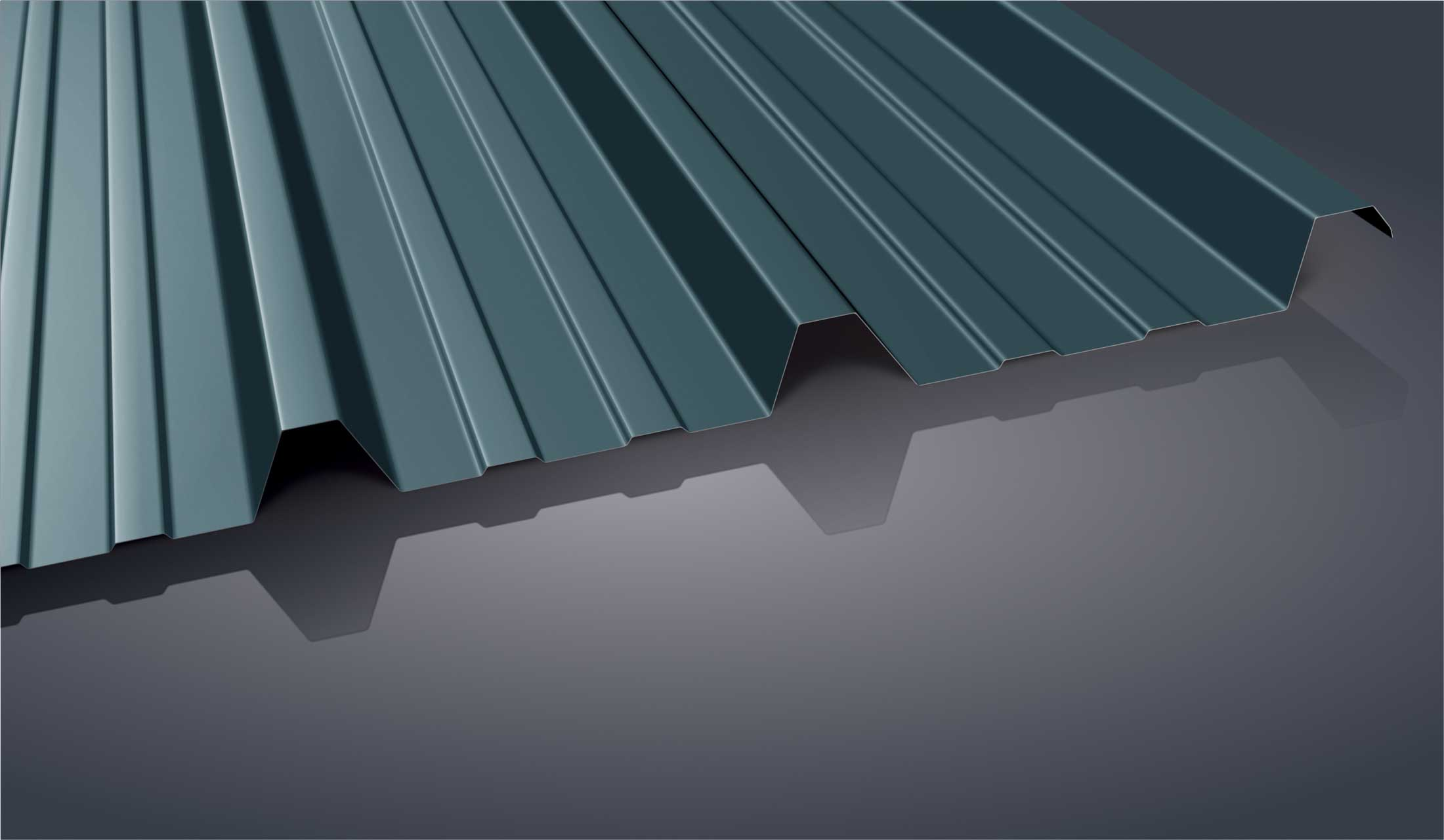

Trapezoidal sheets for roofs and façades
Trapezoidal sheets manufactured by Alternativa d.o.o. Sarajevo are designed for roof covering and façade cladding. They are used in industrial construction and residential construction, from production halls and warehouses to houses, garages and canopies. The appropriate profile depends on the building’s use, the spacing between supports and the expected loads.
Where are trapezoidal sheets used?
Trapezoidal profiled sheets are used on industrial halls, residential and commercial buildings, shopping centres, warehouses, agricultural buildings and outbuildings. Depending on the technical characteristics of the selected profile, they can serve as a roof covering or wall cladding.
Made to measure and choice of materials
Sheets are manufactured to the required length, profile and colour. Production to specified dimensions reduces unnecessary cutting and material waste and makes accurate installation easier. A water drainage groove contributes to the proper functioning of the roof covering.
Production uses galvanised, colour-coated steel sheet, with aluminium, galvanised steel and stainless steel sheets also available for profiling. Sheet thickness and material should match the chosen profile and the project requirements.
Fastening and professional installation
Trapezoidal sheets are secured in the lower part of the profile using suitable sheet-metal fixing screws with neoprene washers. Screws can be selected in the desired colour and to suit timber, metal or concrete structures. Installation should be carried out by trained professionals following the technical instructions for the specific profile and supporting structure.
Load-bearing capacity and test documentation
The load-bearing capacity of the profiles has been verified by IMK, the Institute for Materials and Structures at the Faculty of Civil Engineering in Sarajevo. Alongside load-bearing test documentation, Alternativa holds the relevant certificates for incoming raw materials. See our certificates or contact our technical consulting team for help choosing a profile and material.
