Profiled sheet · Shallow 3 mm wave

ECONOMICSoffits, canopies and façades

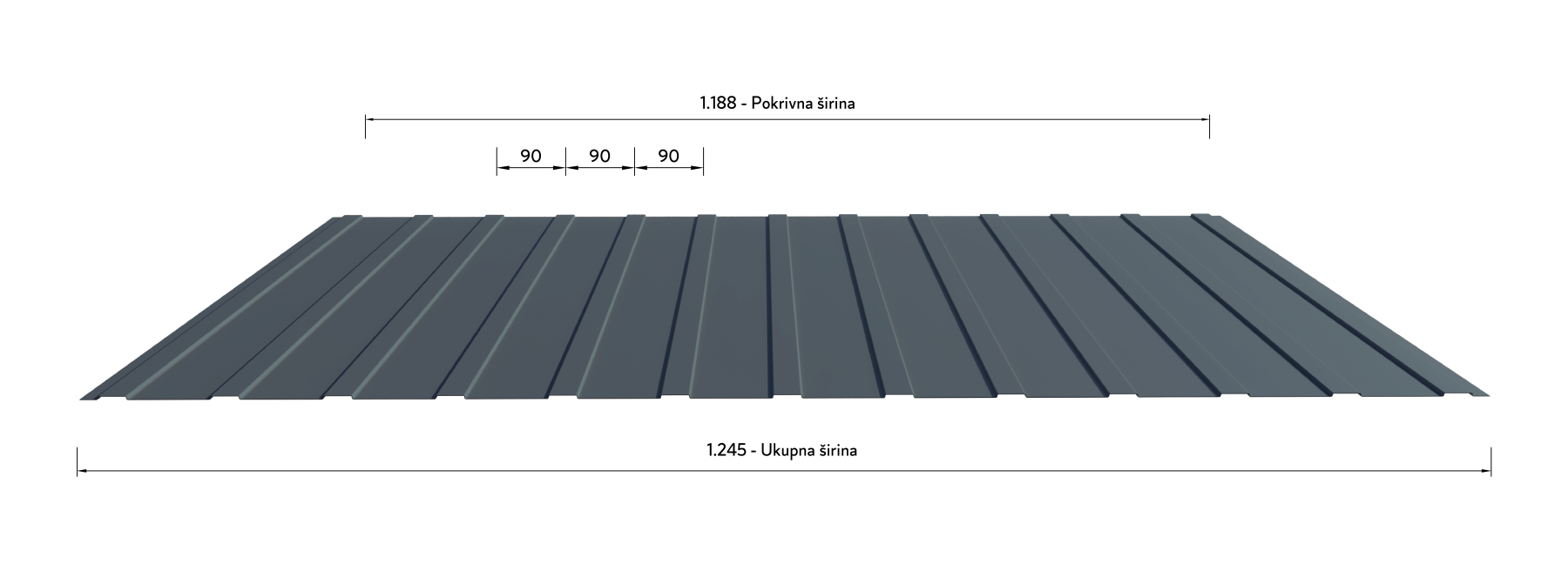

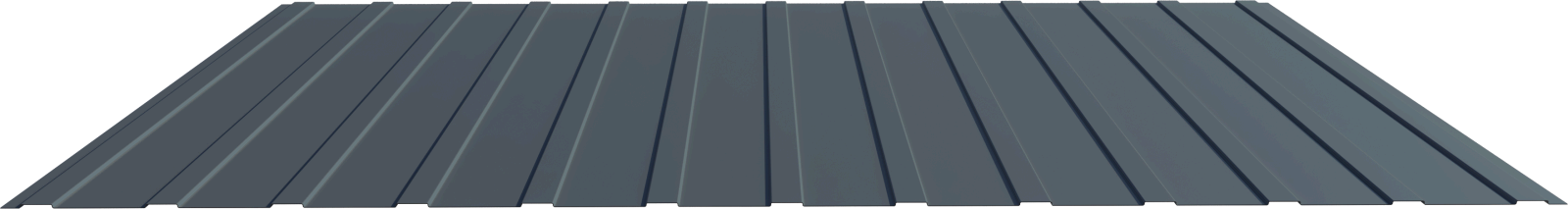

A profiled sheet with a shallow 3 mm wave — an economical answer for soffits and eaves, canopies, fences and façades, with a wide sheet that leaves the plane calm and easy to look after.

ECONOMIC
Cover width
1,188mm
one sheet as laid
Overall width
1,245mm
developed width of the profile
Wave height
3mm
shallow profile
Rib pitch
90mm
field division
01 — ABOUT THE PRODUCT

The Economic profiled sheet is an economical, practical answer for cladding roofs, soffits, canopies, fences and similar surfaces. It is marked by a shallow wave 3 mm high which, besides adding to the look, reduces the build-up of dust and dirt and so makes maintenance easier.

This profiled sheet is produced in the thicknesses required, which gives it a wide field of use as a façade material too, and it can be laid horizontally or vertically. Customers can also choose whether the base colour goes on the inner or the outer face, which adds further freedom in design.

Combining different colours and transition trims makes striking visual effects possible, which makes the Economic sheet well suited to modern architectural projects.

02 — WHY THIS PROFILE

Why choose ECONOMIC?

The same profile covers the roof, the soffit, the canopy, the fence and the façade — and a combination of colours and transition trims gives a look tailored to the project.

01
A shallow wave, less upkeep

A wave just 3 mm high holds far less dust and dirt than a deep profile, so the surface is easier to look after and stays clean longer.

02
A wide sheet, fewer joins

A cover width of 1,188 mm means fewer sheets per square metre and quick installation — and fewer visible overlaps on the finished plane.

03
For every surface

Roofs, soffits and eaves, canopies, fences and façades — as a façade material it goes on horizontally or vertically.

04
Colour to choice, on either side

The customer chooses whether the base colour goes on the inner or the outer face, and combining shades with transition trims gives striking effects.

03 — TECHNICAL DETAILS

Technical details of the ECONOMIC sheet

The cover width of one sheet is 1,188 mm, while length, thickness and colour are matched to the customer’s wishes and needs. The shades shown are indicative — the actual colour may differ from what the screen shows.

Profile section · dimensions in millimetres
Cover width 1,188 mm
Overall width 1,245 mm
Wave height 3 mm
Rib pitch 90 mm
Sheet length made to the customer’s order
Thickness to order
Laying horizontal or vertical
Base colour to choice — on the inner or the outer face
Use roofs, soffits, canopies, fences, façades
Protection galvanised, with a protective zinc coating

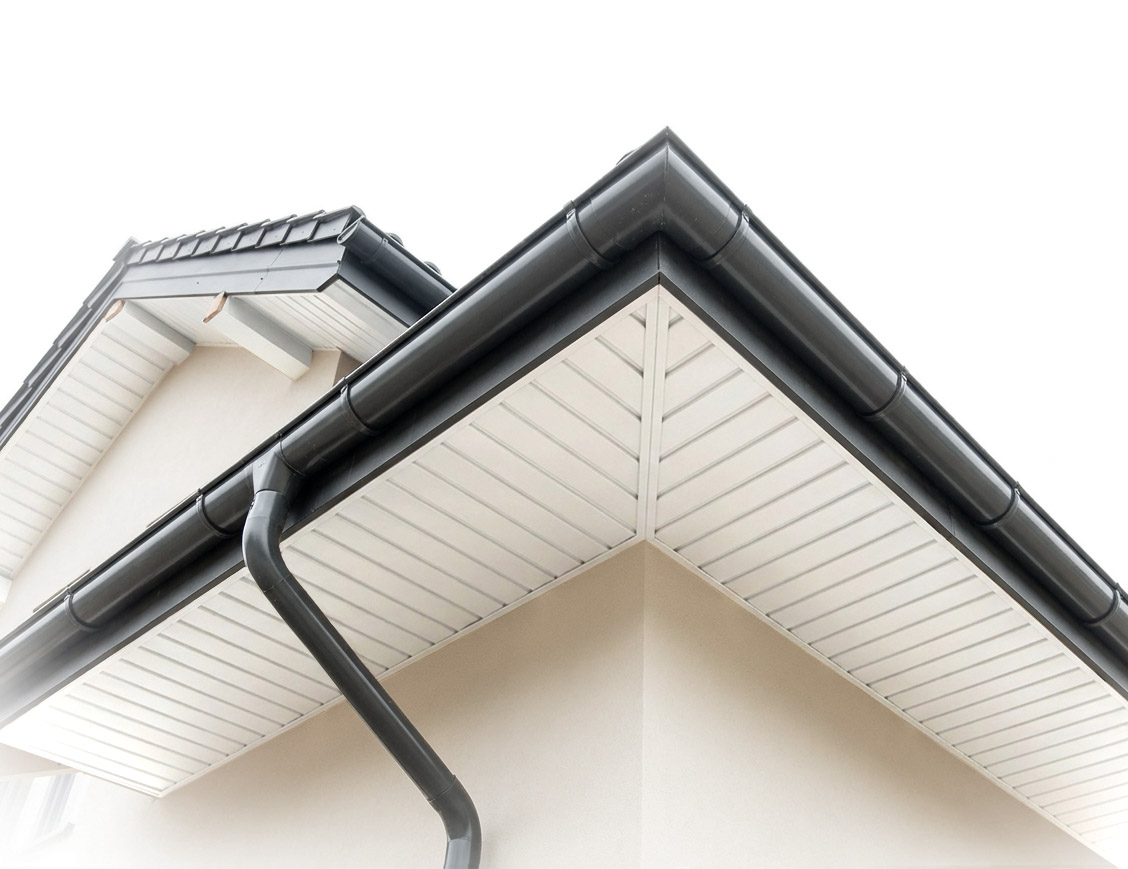

Visualiser

Clad the eaves and try the colour

The view is indicative. The actual shade may differ from what the screen shows.

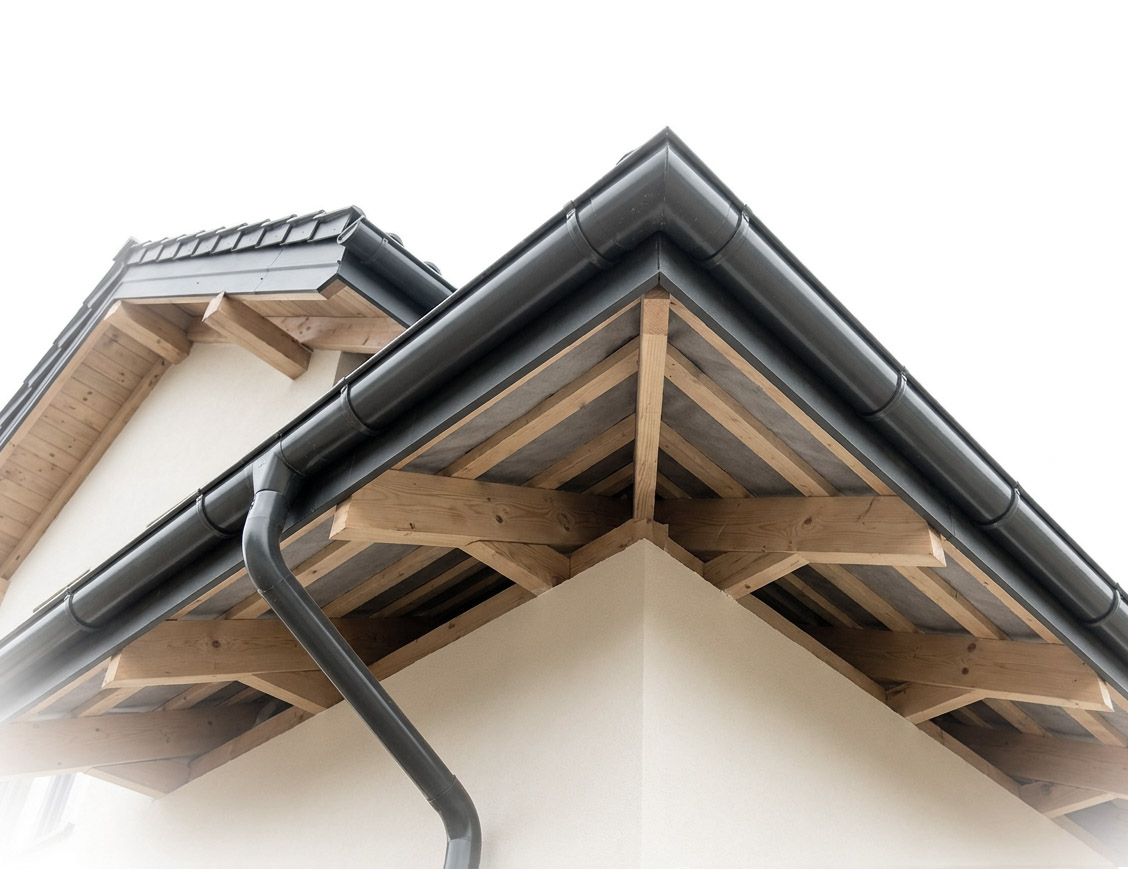

Eaves without cladding ECONOMIC
Standard
Special
Selected
No colourOriginal
04 — FREQUENTLY ASKED QUESTIONS
Customer questions

Frequently asked questions

Find answers to the most common questions below.
If you do not find what you are looking for, feel free to get in touch!

Contact us

Traditionally, spring and summer are the most popular times to fit a roof. Dry, settled weather means faster work and less risk of delay. Thanks to modern methods and quality materials, a roof can be laid at any time of year.

Our sheets are galvanised, which means they carry a zinc coating that prevents rust and extends their service life.

Profiled sheets are light, corrosion-resistant, long-lasting and simple to install.

Yes. The width of the sheets is fixed, while the length can be chosen to suit your project.
