Corrugated sheet · Curved profiling

ESTETIKCorrugated façade sheet

A finer corrugated profile that gives a façade a soft, sophisticated look, and the only one in the range that can be curved — for projects that call for something out of the ordinary.

ESTETIK
Cover width
1,000mm
one sheet as laid
Overall width
1,036mm
developed width
Wave pitch
77mm
thirteen waves per sheet
Thickness
up to 1.20mm
the thickest in the range
ESTETIK
Shape

The only profile that follows a curve

Radial bending opens up shapes a flat sheet does not allow — curved façades, canopies and transitions with no break in the pattern.

01 — ABOUT THE PRODUCT

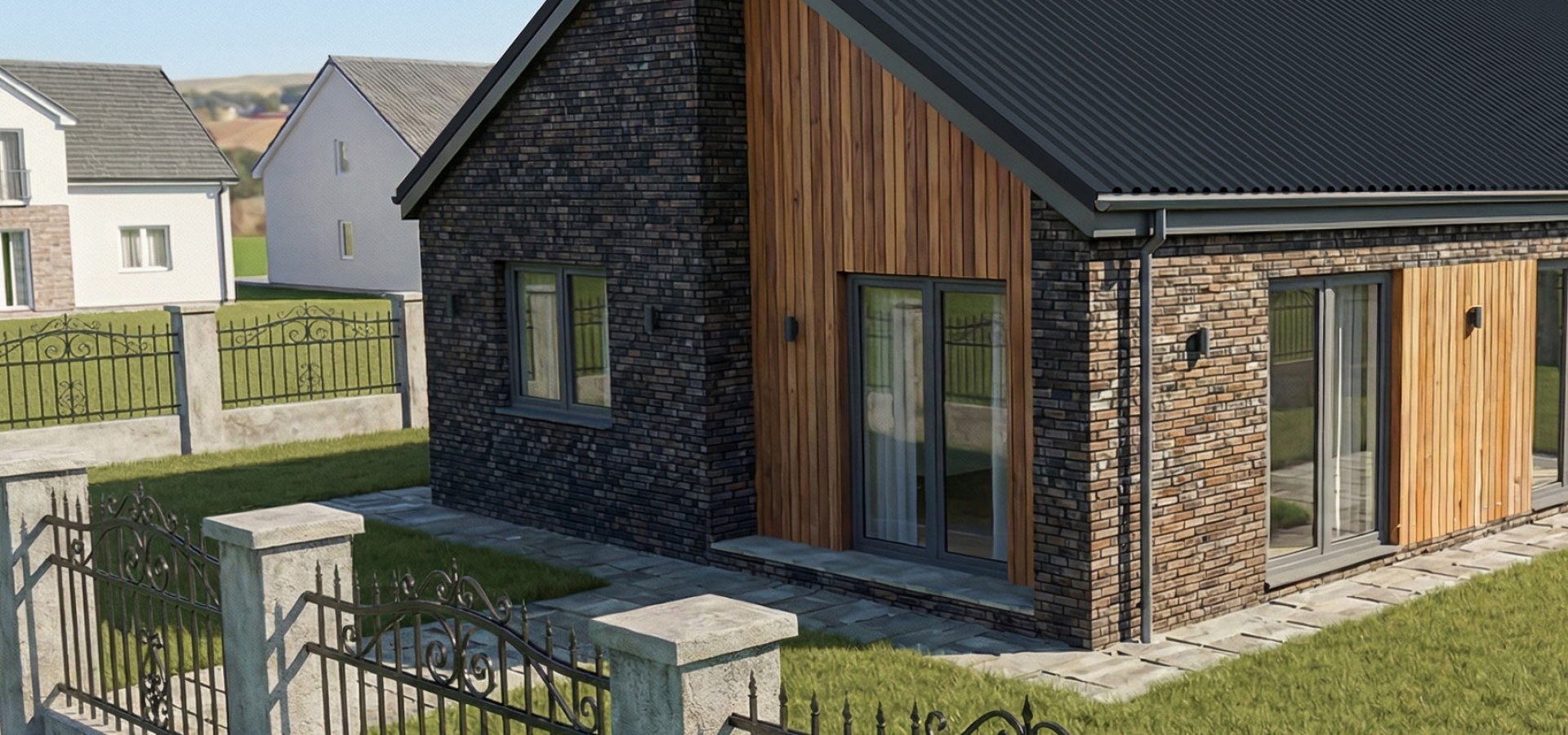

The ESTETIK corrugated sheet brings a modern, sophisticated look to any façade, and comes into its own in combination with cassette cladding. That combination creates a distinctive visual effect, whether it clads the whole façade or only selected sections.

With transition trims, ESTETIK produces a striking play of light, whether laid horizontally or vertically, giving the façade a dynamic and elegant character.

One of its particular strengths is the option of curved profiling, which makes it ideal for projects that call for creative, unconventional answers. It is produced up to 1.20 mm thick, which adds further to its durability.

02 — WHY THIS PROFILE

Why choose the ESTETIK corrugated sheet?

The corrugated sheet is fixed straight onto a metal or timber supporting frame with special self-drilling screws with a neoprene washer, which assures a fully watertight fixing.

01
Exceptional flexibility

One of the greatest strengths of this profile is that it can be bent radially, into a curve.

02
Superior appearance

Unlike trapezoidal profiles with their sharp lines, a corrugated profile creates soft transitions and continuous shadows.

03
Structural strength

It is produced up to 1.20 mm thick, which gives it the durability for more demanding uses.

04
Freedom in laying

The profile gives complete freedom in installation — it can be laid horizontally, vertically or diagonally.

03 — TECHNICAL DETAILS

Technical details of the ESTETIK corrugated sheet

Length, thickness and colour of the sheet are matched to the requirements of the project. The shades shown are indicative — the actual colour may differ from what the screen shows.

Profile section · dimensions in millimetres
Cover width 1,000 mm
Overall width 1,036 mm
Wave pitch 77 mm
Number of waves 13 per sheet
Thickness up to 1.20 mm
Special feature curved (radial) profiling available
Fixing self-drilling screws with a neoprene washer
Sheet length made to measure, to the project
Thickness and colour to the customer’s order
Supporting frame metal or timber
Visualiser

Set the roof and try the colour

The view is indicative. The actual shade may differ from what the screen shows.

Building without roof covering ESTETIK
Standard
Special
Selected
No colourOriginal
04 — FREQUENTLY ASKED QUESTIONS
Customer questions

Frequently asked questions

Find answers to the most common questions below.
If you do not find what you are looking for, feel free to get in touch!

Contact us

Traditionally, spring and summer are the most popular times to fit a roof. Dry, settled weather means faster work and less risk of delay. Thanks to modern methods and quality materials, a roof can be laid at any time of year.

Our sheets are galvanised, which means they carry a zinc coating that prevents rust and extends their service life.

Profiled sheets are light, corrosion-resistant, long-lasting and simple to install.

Yes. The width of the sheets is fixed, while the length can be chosen to suit your project.

Alternativa / Documentation

Knowledge for your next project.

Explore our range, prepare for installation and find technical information in one place.

02
From preparation to installation

Installation manual

Practical guidance for installing Topterm panels correctly.

03
Information for your design

Technical data sheet

Technical characteristics for your selected panel model.

The catalogue is available now. Other documents are supplied on request.
