Wall panel
Topterm FP/ZP S2
A slimmer wall panel with concealed fixing — 40, 50 and 60 mm thick.
DetailsWall panel · Concealed fixing
Topterm FP/ZP S1
Loading the 3D model…
3D view
Drag with the mouse to turn the panel

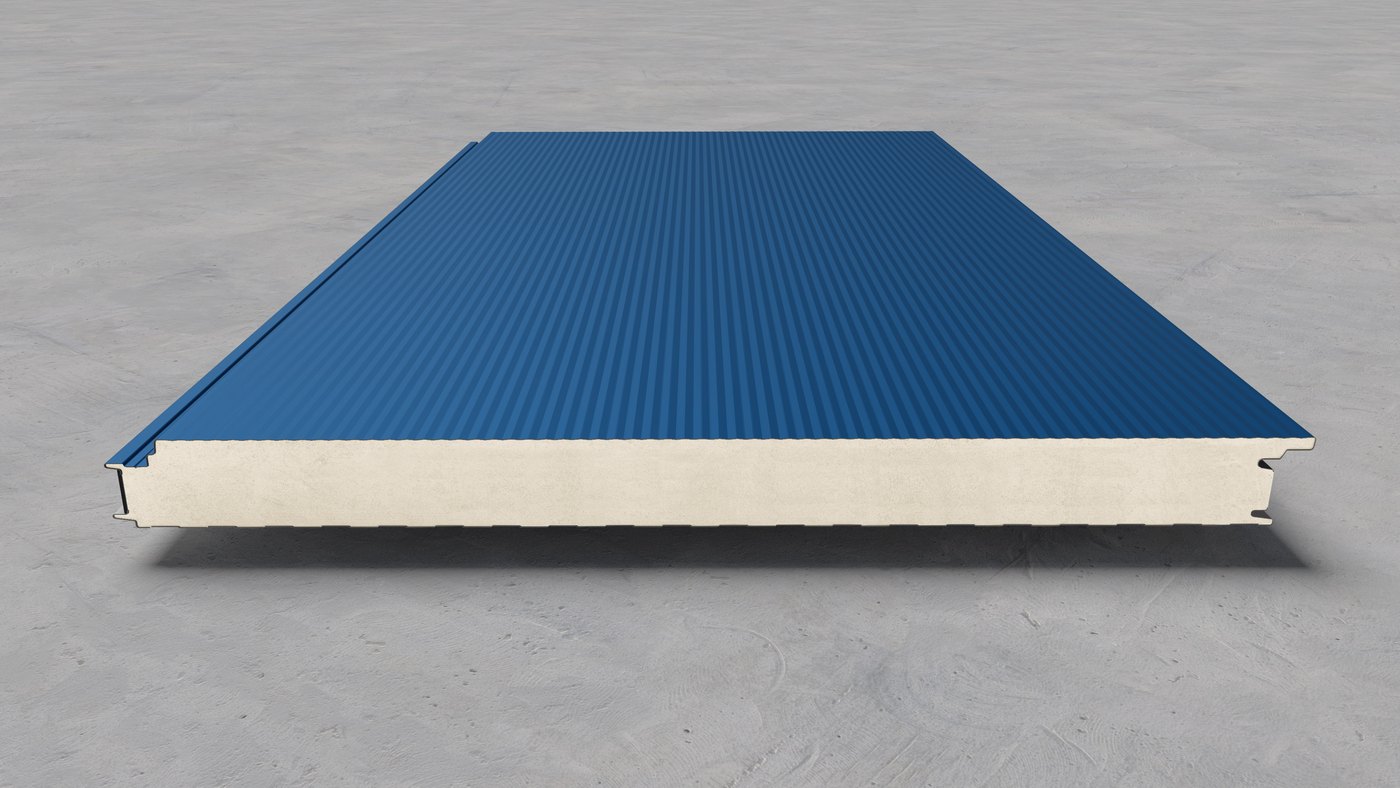

A wall sandwich panel with concealed fixing gives the façade an elegant, monolithic look without a single visible joint or screw. Two profiled steel facings and an insulating core of PUR or PIR foam deliver excellent thermal and acoustic insulation and a long service life — ideal for modern industrial and commercial buildings.
Thickness
60–200 mm
U-value
down to 0.14 W/m²K
Width
100 cm
Weight
10–28 kg/m²
Core
PIR
Core
PUR
Cut to length
To the customer's order
Available sheet profiles
Choose a profile
About the product
A modern answer for external walls
Wall sandwich panels with concealed fixing are the answer for buildings where appearance, energy efficiency and durability matter equally. They consist of two profiled steel facings and an insulating core of PUR foam, PIR foam or mineral wool (RW). Thanks to the concealed fixing system the joints stay invisible and the façade gains a clean, contemporary look.
A clean, monolithic façade without a single visible joint or screw.
PUR or PIR —
U-value down to 0.14 W/m²K.
AZ150 = Zn275 g/m² with a PE or PVDF top coat.
A modular system — vertical or horizontal.
Our colour range
Full RAL palette from stock
Standard colours are available from stock with very short delivery times. On request we also produce specific RAL combinations and decorative wood-effect finishes.
Standard colours
From stock · very short lead times
Additional colours
Made to order · specific RAL combinations
Matt, gloss and decorative finishes are available. For an exact colour and texture sample get in touch with our team — we send physical samples.
Technical data
FP/ZP S1 specification
Panel type
Wall sandwich panel with concealed fixing
Core
PUR or PIR
Panel thickness
60, 80, 100, 120, 150 and 200 mm
U-value
down to 0.14 W/m²K (depending on core and thickness)
Modular width
1000 mm (600–1150 mm optional)
Weight
10–28 kg/m² (depending on thickness and core)
Sheet profiles
Micro profile, LP25, LP50, Box profile, Flat
Corrosion protection
AZ150 = Zn275 g/m²
Top coat
PE or PVDF
Surface finish
Matt, gloss or decorative (wood effect)
Installation
Vertical or horizontal, with concealed fixing
Applications
Where FP/ZP S1 is used
Production halls
Long spans and fast, energy-efficient construction.
Warehousing and logistics
Large-area distribution and logistics centres.
Commercial buildings
Shopping centres, showrooms and offices.
Industrial plants
Production and processing facilities.
Sports and public buildings
Sports halls and buildings for public use.
Agricultural buildings
Farms, silos and stores for agricultural produce.
Documentation
Downloads and technical data
