Wall panel
Topterm FP/ZP S1
Wall sandwich panel with concealed fixing — a monolithic look with no visible joints.
DetailsCold store panel · Polyurethane · Concealed joint

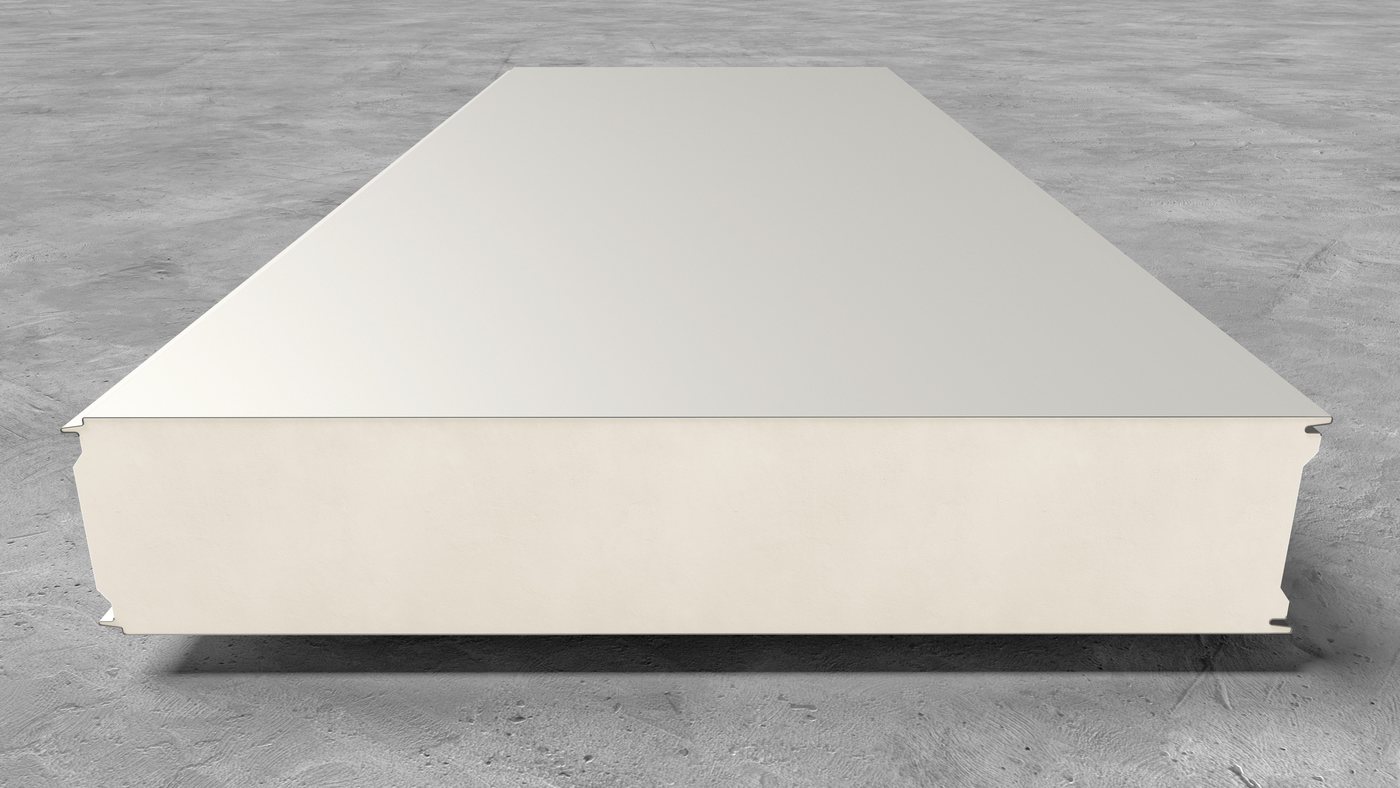

Topterm Frigo
Loading the 3D model…
3D view
Drag with the mouse to turn the panel
A panel for <b>controlled environments</b> — wall and ceiling, for chambers and cold stores where the temperature has to stay put. Thicknesses from 80 to 200 mm, a concealed labyrinth joint and a flat sheet that washes down easily.
Thickness
80–200 mm
U-value
0.25–0.09 W/m²K
Weight
10–15 kg/m²
Core
PUR / PIR
Joint
Concealed labyrinth
Cover width
1000 / 1150 mm
Available sheet profiles
Choose a profile
About the product
A panel for rooms where the temperature must not swing
Panels for controlled environments, or Frigo panels, are used as ceiling and wall panels in chambers and cold stores that have to hold a constant temperature — and this is where the insulating qualities of polyurethane come fully into their own. Frigo panels can be made up to 200 mm thick, where the U-value drops to 0.09 W/m²K.
The panel has three parts: an outer sheet 0.50 mm thick, a core of polyurethane (PUR) or polyisocyanurate (PIR) foam and an inner load-bearing sheet of 0.40 mm. It is joined with a concealed labyrinth joint — no visible screw and no sealing tape, because the seal is formed in the profile of the sheet itself.
Besides the line profile a flat one can also be made, which matters particularly in buildings with strict hygiene requirements. As well as coated steel sheet, we can make Frigo panels with stainless steel sheet.
For chambers and cold stores — this is where the insulating qualities of polyurethane come fully into their own.
A long path through the joint and not one visible screw — no break in the insulation along the seam.
A flat sheet without ribs washes down easily —
for plants on a strict hygiene regime.
The thickest panel in the range: U-value down to 0.09 W/m²K.
Our colour range
Full RAL palette from stock
Standard colours are available from stock with very short delivery times. On request we also produce specific RAL combinations and decorative wood-effect finishes.
Standard colours
From stock · very short lead times
The standard colour for the cold store panel is RAL 9002, with RAL 9010 as an additional option. For rooms with the strictest hygiene requirements the panel is also made with stainless steel sheet — get in touch with us for that option.
Technical data
Topterm Frigo specification
Panel type
Wall and ceiling panel for chambers and cold stores
Core
Polyurethane (PUR) or polyisocyanurate (PIR)
Panel thickness
80, 100, 120, 150, 180 and 200 mm
U-value
0.25 · 0.19 · 0.16 · 0.13 · 0.11 · 0.09 W/m²K (by thickness, in order)
Panel weight
From 10.18 to 14.86 kg/m², depending on thickness
Net cover width
1000 mm or 1150 mm
Overall width
1020 mm or 1170 mm
Outer sheet
Galvanised and coated steel sheet 0.50 mm, or stainless steel
Inner sheet
Galvanised and coated steel sheet 0.40 mm, or stainless steel
Sheet profiles
Flat (standard), micro profile, LP25, LP50, Box profile
Sheet colours
RAL 9002 as standard; RAL 9010 and stainless steel in addition
Installation
Concealed labyrinth joint, with no visible screw
Applications
Where the Frigo panel is used
Cold stores and chambers
Chilled and deep-frozen chambers held at a constant temperature.
Food industry
Processing and packing plants that are washed down daily.
Distribution centres
Cold chains, dispatch bays and transfer areas.
Clean rooms
Controlled environments under strict hygiene.
