Topterm KP
Loading the 3D model…
3D view
Drag with the mouse to turn the panel

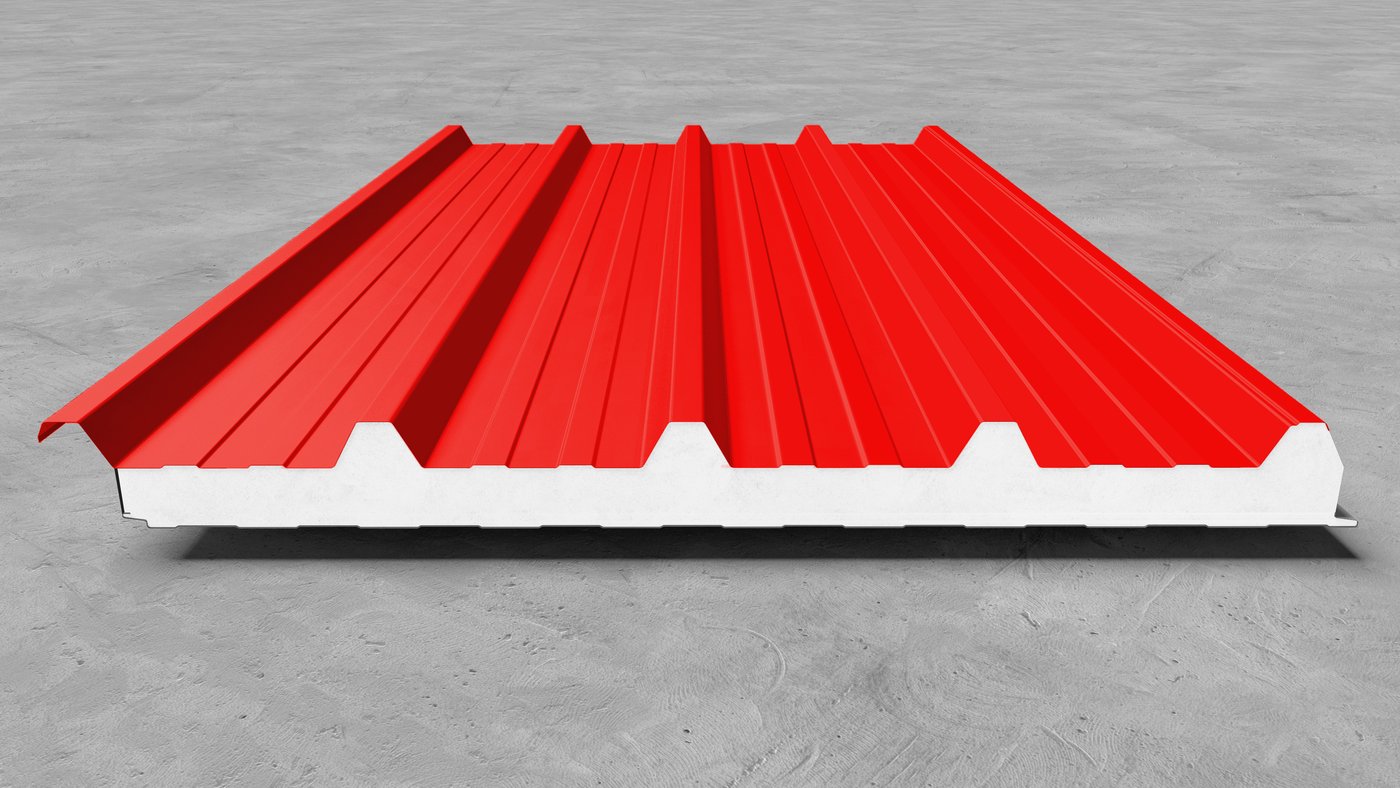

A roof sandwich panel with a <b>trapezoidal</b> outer sheet and a polyurethane core. Five ribs 40 mm high carry the roof plane, and a cap covers the screw. Thicknesses from 30 to 150 mm.
Thickness
30–150 mm
U-value
0.63–0.13 W/m²K
Weight
9–14 kg/m²
Core
PUR / PIR
Outer profile
TR40/250/1000
Cover width
1000 mm

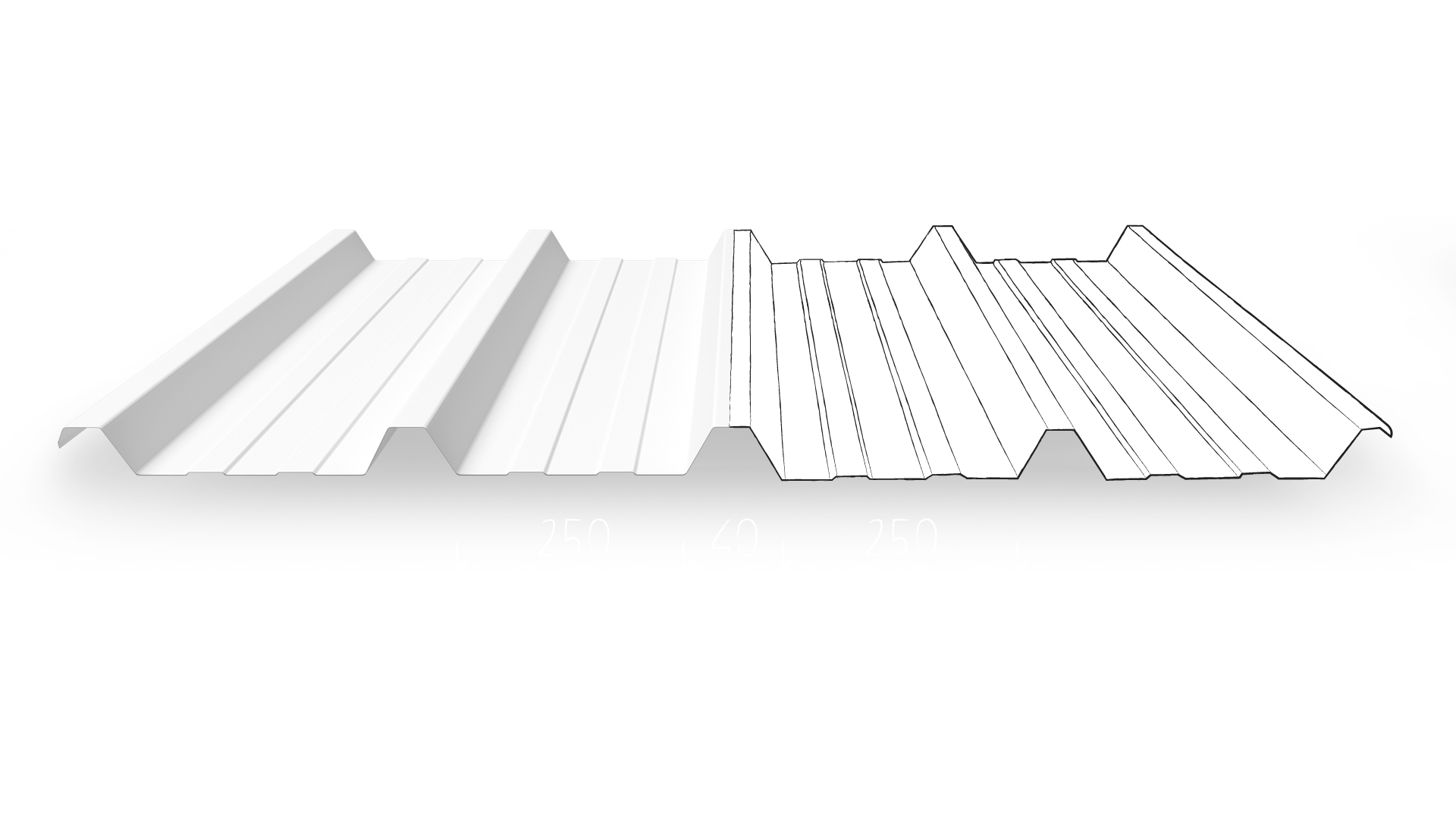

RT 40/250/1000
Standard profile
About the product
The strength comes from the ribs
Insulated roof panels consist of two profiled sheets and a polyurethane core, which insulates outstandingly whether it is PUR or PIR.
The outer face of the panel is a trapezoidal sheet with five ribs and stiffeners in the flat, which is where the roof panel’s load capacity comes from. The inner face is usually made as a line profile, but on special request it can also be micro profile or flat. The minimum roof pitch is 5°, or less if particular conditions are met.
Roof panels can also be ordered with an overhang of the upper trapezoidal sheet; during production a protective tape is applied along the overhang so the polyurethane is easier to clean. The overhang is made to the customer’s length, from 70 to 300 mm. Panels are produced in thicknesses from 30 to 150 mm, with the customer choosing the colour and thickness of the sheets.
Ribs 40 mm high with stiffeners in the flat — that is where the roof panel’s strength comes from.
The joint is fixed through the rib, and a cap closes over the screw.
A polyurethane core up to 150 mm —
for heated halls and plants.
The panel is cut to the length required, so the roof plane runs without a cross joint.
Our colour range
Full RAL palette from stock
Standard colours are available from stock with very short delivery times. On request we also produce specific RAL combinations and decorative wood-effect finishes.
Standard colours
From stock · very short lead times
Additional colours
Made to order · specific RAL combinations
The standard colours for the roof panel are RAL 9002 and RAL 9006. RAL 3009, 5010, 6028, 7016, 8019 and 9007 are also made. For an exact colour and texture sample get in touch with our team — we send physical samples.
Technical data
Topterm KP specification
Panel type
Roof sandwich panel with a straight joint
Core
Polyurethane (PUR) or polyisocyanurate (PIR)
Panel thickness
30, 40, 50, 60, 80, 100, 120 and 150 mm
U-value
0.63 · 0.48 · 0.39 · 0.33 · 0.25 · 0.20 · 0.17 · 0.13 W/m²K (by thickness, in order)
Panel weight
From 9.10 to 14.19 kg/m², depending on thickness
Cover width
1000 mm net; overall panel width 1075 mm
Outer profile
TR40/250/1000 — five trapezoidal ribs 40 mm high, at 250 mm centres
Inner profile
Line 25, line 50, micro profile or flat
Outer sheet
Galvanised and coated steel sheet, 0.50 mm
Inner sheet
Galvanised and coated steel sheet, 0.40 mm
Minimum roof pitch
5°, or less if particular conditions are met
Installation
Screwed through the rib; a cap covers the screw
Applications
Where the KP panel is used
Production halls
Long-span roof planes over plants.
Warehousing and logistics
Distribution centres and covered loading bays.
Sports buildings
Sports halls and covered pitches.
Agricultural buildings
Farms, dryers and crop stores.
