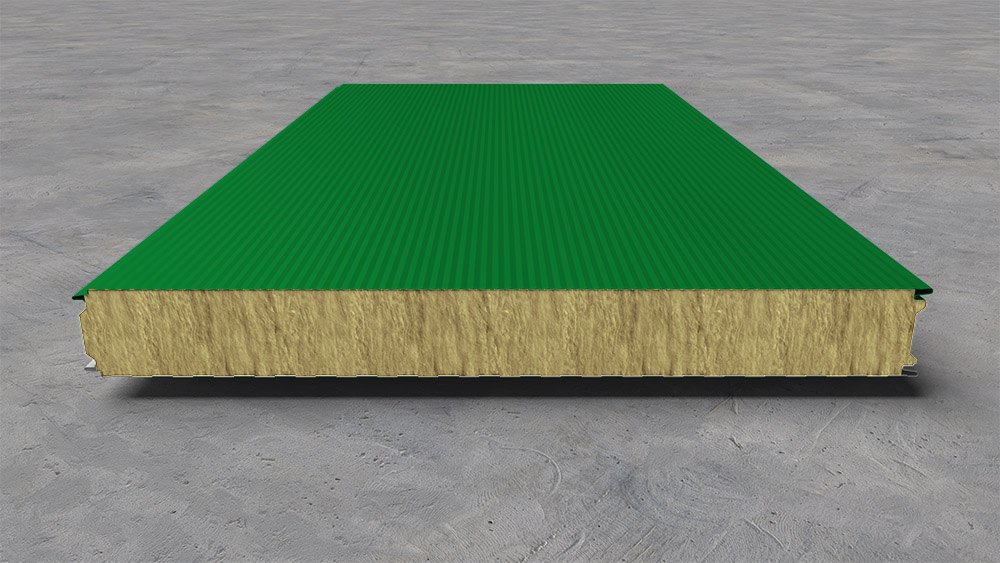

Topterm FP/ZP RWV
Loading the 3D model…
3D view
Drag with the mouse to turn the panel
A wall sandwich panel with a <b>mineral wool</b> core and exposed fixing. The mineral core brings acoustic as well as thermal insulation, and the simple joint makes installation fast and economical. Thicknesses from 50 to 200 mm.
Thickness
50–200 mm
Weight
14–29 kg/m²
Core
Mineral wool
Joint
Exposed fixing
Outer sheet
0.50 mm
Inner sheet
0.40 mm
Available sheet profiles
Choose a profile
About the product
A mineral core, simple to fit
Unlike panels with a polyurethane core, the Topterm RWV has a core of mineral wool. It brings acoustic insulation alongside the thermal, which suits buildings with heightened safety requirements.
The panel has three parts: an outer profiled sheet 0.50 mm thick, a mineral wool core and an inner load-bearing sheet of 0.40 mm. It comes in thicknesses of 50, 60, 80, 100, 120, 150, 180 and 200 mm, weighing 14 to 29 kg/m² depending on thickness.
It is screwed through the face of the panel, which makes installation fast and inexpensive — that is the only difference from the RWS panel, which has a concealed joint. It is available in five sheet profiles and the full RAL palette.
A mineral core instead of foam — for buildings with heightened safety requirements.
Mineral wool damps sound —
acoustic protection as well as thermal.
An exposed joint — no extra steps and the lowest cost.
AZ150 = Zn275 g/m² with a PE or PVDF top coat.
Our colour range
Full RAL palette from stock
Standard colours are available from stock with very short delivery times. On request we also produce specific RAL combinations and decorative wood-effect finishes.
Standard colours
From stock · very short lead times
Additional colours
Made to order · specific RAL combinations
Matt, gloss and decorative finishes are available. For an exact colour and texture sample get in touch with our team — we send physical samples.
Technical data
FP/ZP RWV specification
Panel type
Wall sandwich panel with a concealed joint
Core
Mineral wool (RW)
Panel thickness
50, 60, 80, 100, 120, 150, 180 and 200 mm
Panel weight
From 14.11 to 29.11 kg/m², depending on thickness
Outer sheet
Galvanised and coated steel sheet, 0.50 mm
Inner sheet
Galvanised and coated steel sheet, 0.40 mm
Sheet profiles
Micro profile, LP25, LP50, Box profile, Flat
Corrosion protection
AZ150 = Zn275 g/m²
Top coat
PE or PVDF
Surface finish
Matt, gloss or decorative (wood effect)
Installation
Screwed through the face of the panel
Applications
Where FP/ZP RWV is used
Industrial buildings
Plants with heightened safety requirements.
Warehousing and logistics
Large spaces and storage capacity.
Commercial buildings
Offices and retail space.
Public buildings
Buildings for public use and sports halls.
Documentation
Downloads and technical data
