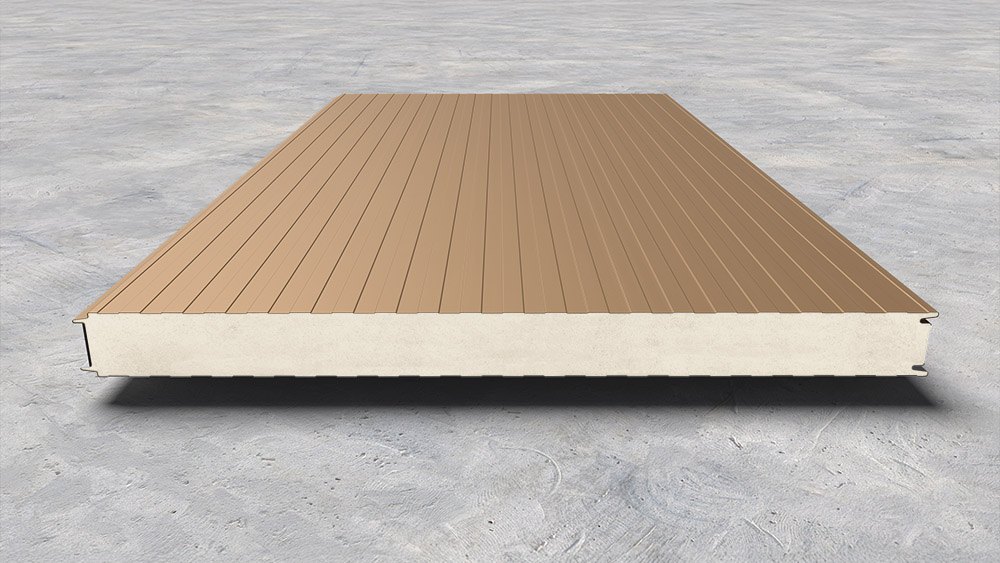

Topterm FP/ZP V2
Loading the 3D model…
3D view
Drag with the mouse to turn the panel
A wall sandwich panel with an exposed labyrinth joint — a strong, dependable answer for industrial, commercial and container buildings. The labyrinth joint adds strength and stability to the structure, and every version from 40 mm up has a double-reinforced joint.
Thickness
40–200 mm
Width
1000 · 1150 mm
Joint
Labyrinth
Core
PUR
Core
PIR
Profiles
5 versions
Available sheet profiles
Choose a profile
About the product
Strength begins at the joint
Topterm V2 panels with an exposed labyrinth joint are a strong, dependable and visually adaptable way to clad industrial, commercial and container buildings. The distinctive labyrinth joint adds strength and stability to the structure, while simple installation means a fast build with savings in time and cost.
The panel is made from two galvanised and coated steel facings with an insulating core of polyurethane (PUR) or polyisocyanurate (PIR) between them, which delivers excellent thermal insulation and high energy efficiency.
Standard widths are 1000 and 1150 mm and thicknesses run from 40 to 200 mm, so the panel can be matched precisely to the project. Every version 40 mm and thicker has a double-reinforced joint. The panel is available in five profile versions.
Extra strength and stability for the structure, right at the panel joint.
Every version from 40 mm up —
reinforcement is standard, not an option.
Two standard sizes: 1000 and 1150 mm.
Simple to fit, saving time and cost.
Our colour range
Full RAL palette from stock
Standard colours are available from stock with very short delivery times. On request we also produce specific RAL combinations and decorative wood-effect finishes.
Standard colours
From stock · very short lead times
Additional colours
Made to order · specific RAL combinations
Matt, gloss and decorative finishes are available. For an exact colour and texture sample get in touch with our team — we send physical samples.
Technical data
FP/ZP V2 specification
Panel type
Wall sandwich panel with an exposed labyrinth joint
Core
PUR or PIR
Panel thickness
From 40 to 200 mm
Modular width
1000 and 1150 mm
Joint
Labyrinth; double-reinforced on every thickness from 40 mm up
Sheet profiles
Micro profile, LP25, LP50, Box profile, Flat
Corrosion protection
AZ150 = Zn275 g/m²
Top coat
PE or PVDF
Surface finish
Matt, gloss or decorative (wood effect)
Installation
An exposed joint — fast, with no extra steps
Applications
Where FP/ZP V2 is used
Industrial buildings
Production halls and processing plants.
Commercial buildings
Offices and retail space.
Warehousing and logistics
Demanding storage and logistics work.
Container buildings
The 1150 mm panel as a container panel.
